High Temperature FKM Rubber Sheet Reinforced with 1PLY Glassfiber or Aramid Fabric for Industrial Applications with 0.5mm-10mm Thickness and Tear Strength ≥25N/mm

  • High Temperature FKM Rubber Sheet Reinforced with 1PLY Glassfiber or Aramid Fabric for Industrial Applications with 0.5mm-10mm Thickness and Tear Strength ≥25N/mm
  • High Temperature FKM Rubber Sheet Reinforced with 1PLY Glassfiber or Aramid Fabric for Industrial Applications with 0.5mm-10mm Thickness and Tear Strength ≥25N/mm
  • High Temperature FKM Rubber Sheet Reinforced with 1PLY Glassfiber or Aramid Fabric for Industrial Applications with 0.5mm-10mm Thickness and Tear Strength ≥25N/mm
  • High Temperature FKM Rubber Sheet Reinforced with 1PLY Glassfiber or Aramid Fabric for Industrial Applications with 0.5mm-10mm Thickness and Tear Strength ≥25N/mm
  • High Temperature FKM Rubber Sheet Reinforced with 1PLY Glassfiber or Aramid Fabric for Industrial Applications with 0.5mm-10mm Thickness and Tear Strength ≥25N/mm
  • High Temperature FKM Rubber Sheet Reinforced with 1PLY Glassfiber or Aramid Fabric for Industrial Applications with 0.5mm-10mm Thickness and Tear Strength ≥25N/mm
  • High Temperature FKM Rubber Sheet Reinforced with 1PLY Glassfiber or Aramid Fabric for Industrial Applications with 0.5mm-10mm Thickness and Tear Strength ≥25N/mm
Place of Origin China
Nombre de la marca 3A Rubber
Certificación ISO9001
Model Number 3A5007
Minimum Order Quantity 100kgs
Precio USD12.80-22.80/kg
Packaging Details Packing in rolls and pallets
Delivery Time 7-15days
Condiciones de pago T/T, L/C, D/P, Western Union, PayPal
Supply Ability 200000kgs/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

En WeChat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Resistencia al aceite Bien Material Fluorubber, FKM, FPM, Viton
Insertar Refuerce la fibra de vidrio 1PLY o la tela de Aramid Color Negro, blanco, Brown, verde, amarillo
Nombre Hoja de goma de Viton, hoja de Fluorubber, hoja de FKM, hoja de FPM Ancho 1m a 2m
Compresión ≤15% Resistencia a la tracción 5-9MPa
Resaltar

Reinforced FKM Rubber Sheet

,

0.5mm-10mm High Temperature Rubber Sheet

,

Tear Strength ≥25N/mm Viton Rubber Sheet
Deja un mensaje
Descripción de producto

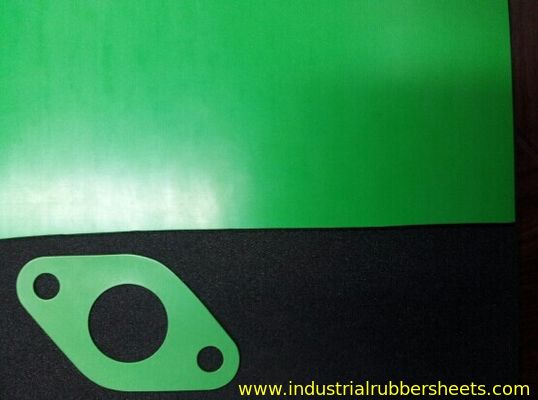

High Temperature FKM Rubber Sheet

Premium fluororubber sheet offering exceptional temperature resistance (-60°C to +320°C) for demanding industrial applications. Available in multiple colors and thicknesses from 0.5mm to 10mm.

Key Features
  • Superior temperature resistance range: -60°C to +320°C
  • Excellent oil and acid resistance properties
  • High tear strength (≥25N/mm) for durability
  • Available with optional 1PLY glassfiber or aramid fabric reinforcement
  • Multiple color options: Black, White, Brown, Green, Yellow
  • Good aging resistance for long-term performance
Technical Specifications
Parameter Value
Material Fluorubber (FKM/FPM/Viton)
Tensile Strength 5-9MPa
Hardness 75±5 Shore A
Compression Set ≤15%
Surface Finish Smooth or Fabric Impression
Industrial Applications

This high-performance rubber sheet is ideal for:

  • Punching rubber seals and gaskets
  • Vacuum laminators (wooden PVC, steel door, safety glass)
  • Solar photovoltaic module production
  • Hot press and card press laminators
  • Automotive and aerospace components
  • Thermal insulation and protection systems
Customization & Ordering
Model: 3A5007
Certification: ISO9001
MOQ: 100kgs
Price: $12.80-$22.80/kg
Delivery: 7-15 days
Supply Capacity: 200,000kgs/month
Payment Methods: T/T, L/C, D/P, Western Union, PayPal

Available in custom forms: Rubber Mat, Pad, Film with various thickness and reinforcement options.
