T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)

  • T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
  • T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
  • T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
  • T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
  • T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
Lugar de origen Porcelana
Nombre de la marca 3A Rubber
Certificación ISO9001
Número de modelo 3A1001
Cantidad de orden mínima 10 rolls
Precio USD250.00
Detalles de empaquetado Embalaje en rollos, cartones y palets
Tiempo de entrega 7-15 días después de recibir el pago del comprador
Condiciones de pago LC, D/P, T/T, Western Union
Capacidad de la fuente 1000 rollos por mes
Datos del producto
Resaltar

red silicone fiberglass fabric

,

Rogers style silicone sheet

,

T0.75mm fiberglass fabric roll
Deja un mensaje
Descripción de producto
T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
Red Silicone Coated Fiberglass Fabric (Rogers Style)
Product Overview

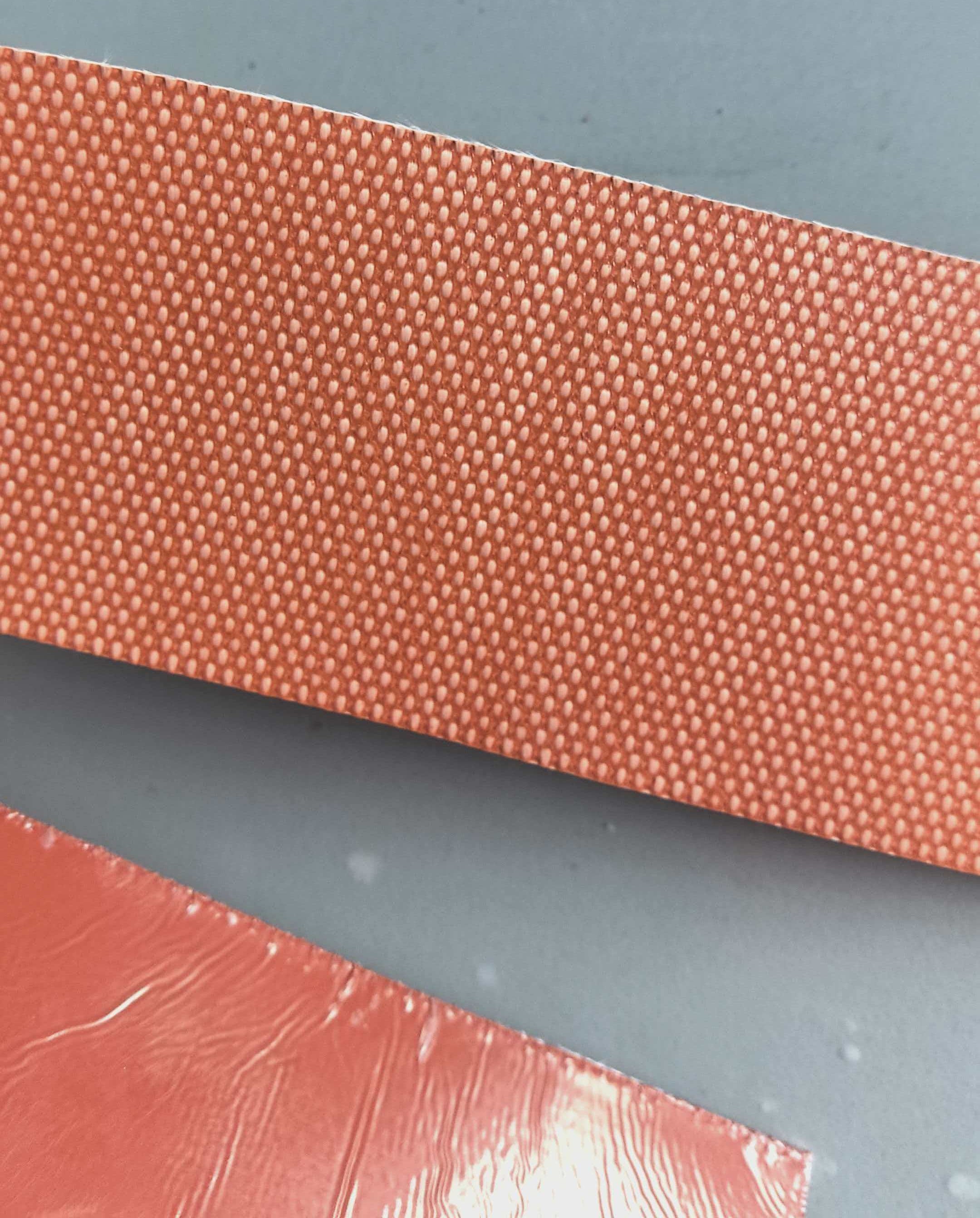

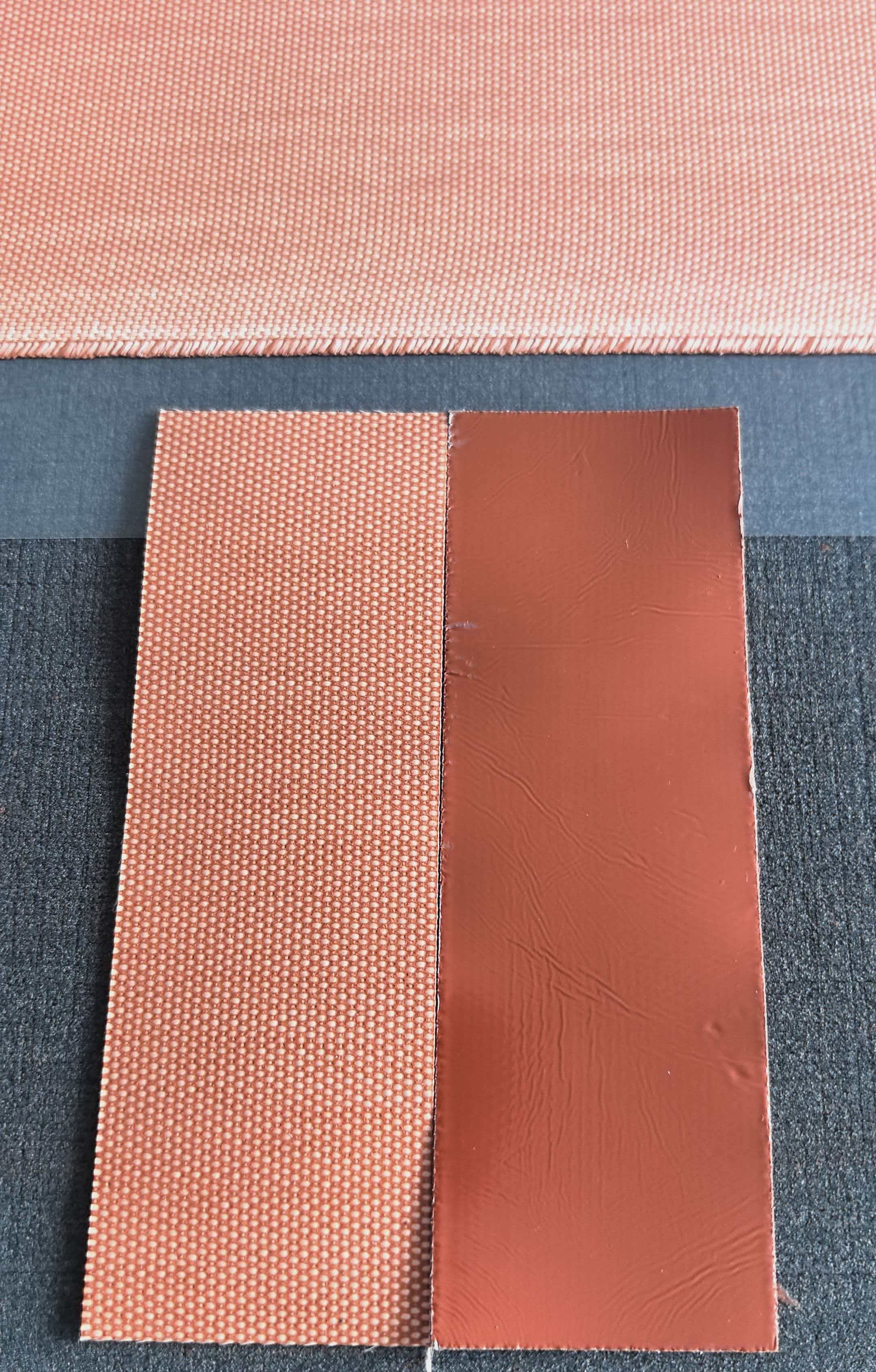

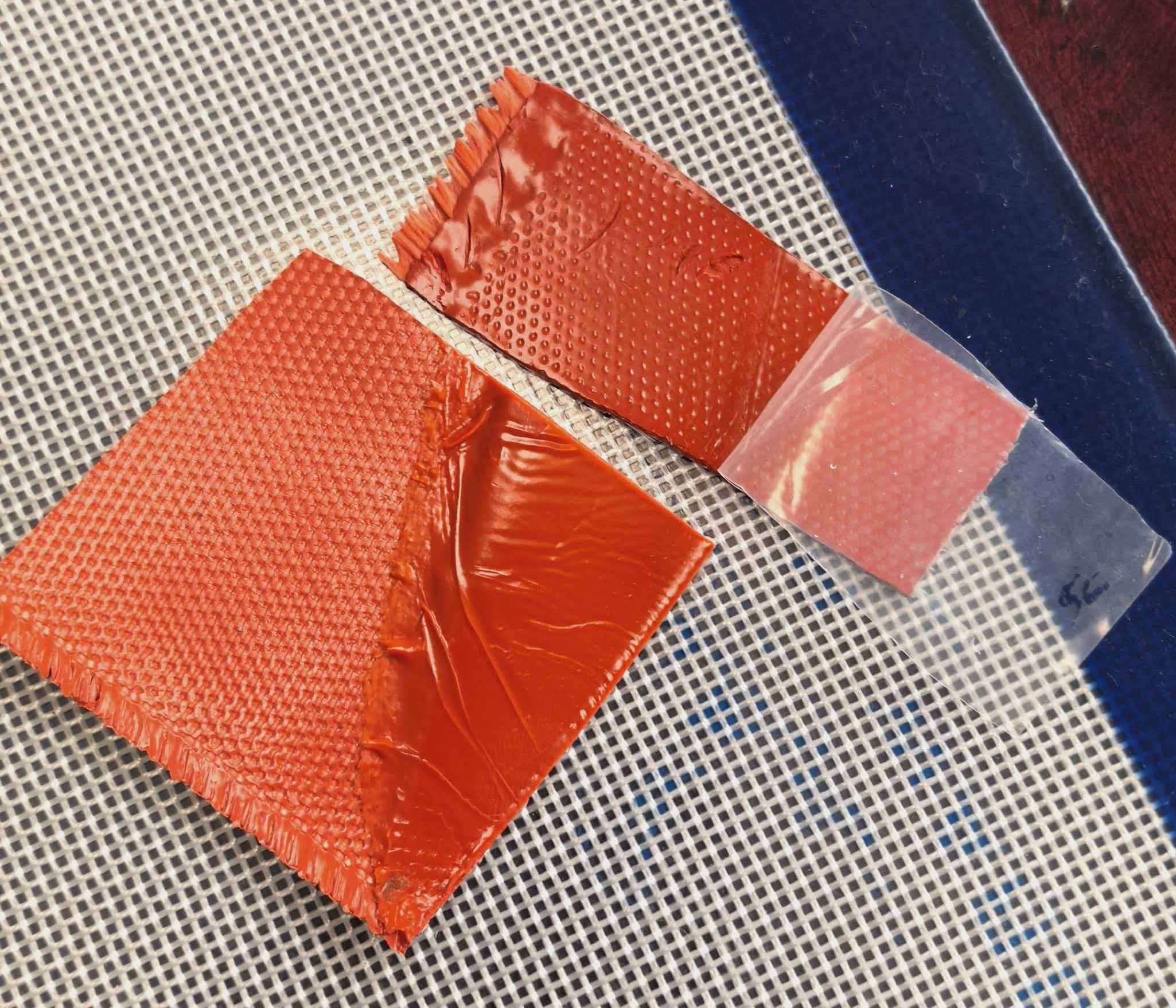

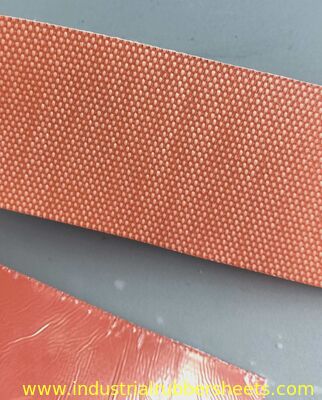

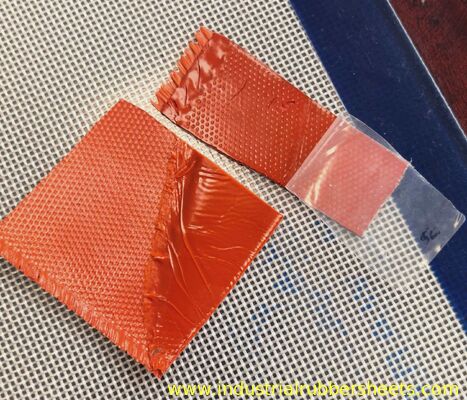

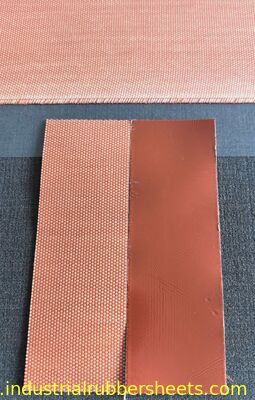

This high-performance composite material is engineered with alkali-free fiberglass fabric as the base substrate, coated with a specialized dual-surface silicone layer. It is designed to mimic the performance characteristics of Rogers Corporation materials. One side features a thin, fully cured silicone coating for durability and release properties, while the reverse side retains a layer of uncured silicone rubber providing a tacky, self-bonding surface. Standard thickness is 0.75mm.
Key Specifications & Performance
  • Dimensions: Thickness 0.75mm x Width 1 meter x Length 10 meters per roll
  • Temperature Range: Excellent thermal stability for continuous use from -70°C to +280°C (-94°F to +536°F)
  • Electrical Insulation: High dielectric strength (Breakdown Voltage: 20~50kV/mm), Dielectric Constant approx. 3.0~3.2
  • Mechanical Properties: High tensile strength, excellent flexibility, and superior resistance to ozone, UV, oxygen, and weathering
Product Gallery
T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style) 0 T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style) 1 T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style) 2 T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style) 3 T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style) 4
Typical Applications
This "semi-cured" construction is ideal for applications requiring one-side chemical resistance or heat lamination bonding:
  • Heating Element Manufacturing: Wrapping material for Ni-Cr wire heating cables, defrosters, and flexible heaters
  • Molding & Press Cushioning: Used as a buffer/release sheet in the lamination of heat plates for new energy, LED manufacturing, and kitchen appliances
  • Thermal Insulation & Sealing: Fabrication of removable insulation jackets, pipe wraps, and high-temperature gaskets
  • Industrial Protection: Suitable for electrical insulation barriers and welding/heat shields where only one side requires contact protection
